LOUVERS

The Louvers pane contains the parameters for the window's louvers. We will take a quick look at a few of its key features, but for a full breakdown of all fields, please visit the Help page.

Vectorworks
Help

Key Features

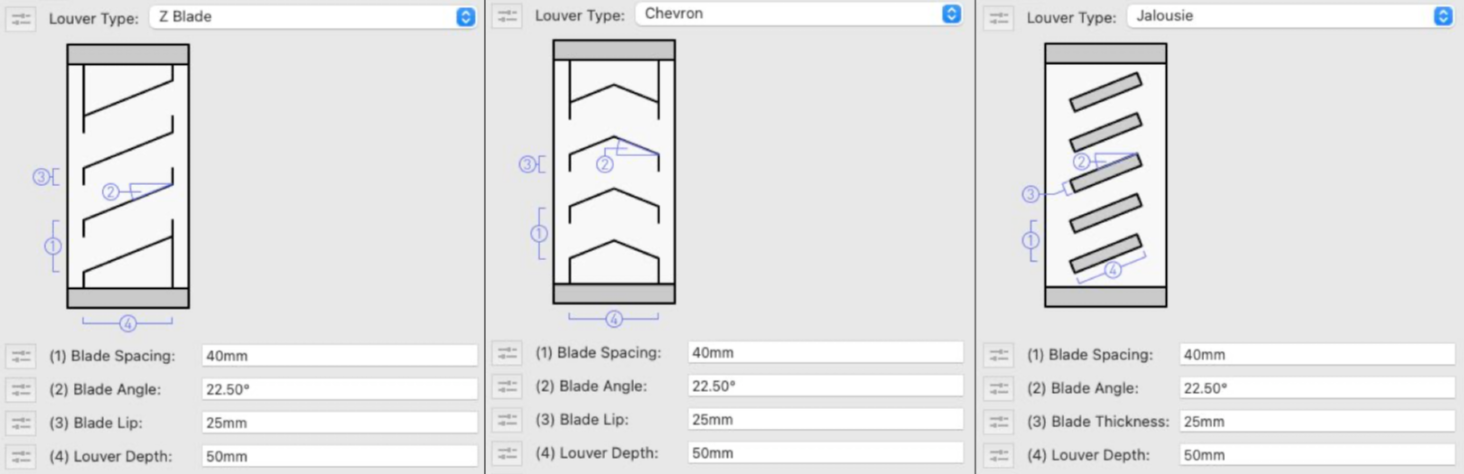

Louver Type: There are three louver types.

  • Z Blade
  • Chevron
  • Jalousie
As you switch between them, you will notice the diagram and the name of the corresponding field (3) below also change.

The Window tool Louver options
